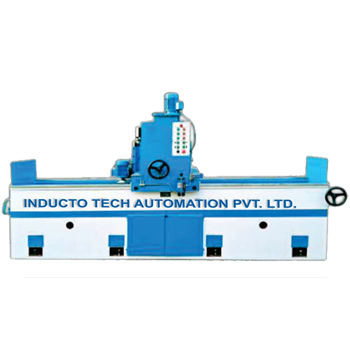

This industrial machine is specifically engineered for fabrication tasks involving 10 to 12 mm thick materials and features a durable slide cast produced in Iran. It requires an electrical load of 13 H.P., with a securely mounted electrical panel to ensure stable operational performance. A powerful magnet measuring 150 × 120 × 1500 mm is integrated into the system, enabling strong and stable workpiece holding. The machine supports grinding operations up to 125 × 1500 mm, making it suitable for various industrial grinding applications.
The grinding mechanism is powered by a 10 H.P. BBL motor, assisted by a 0.5 H.P. BBL gearbox motor for smooth and consistent motion. A six-segment grinding chuck ensures accurate workpiece positioning. The guide ways are carefully hardened and ground to ensure long-term durability and precision. A coolant tank with an approximate capacity of 100 liters provides effective heat dissipation during extended machine operation.
For enhanced safety and reliability, the machine is equipped with high-quality LAP cables, Schneider relay contactors, and Omron sensors. It delivers an impressive operational accuracy ranging between 0.050 mm and 0.090 mm. With a total machine weight of around 1300 kg, this system is built for stable, high-precision industrial performance.
